Ni-MH Batteries and their memory effect

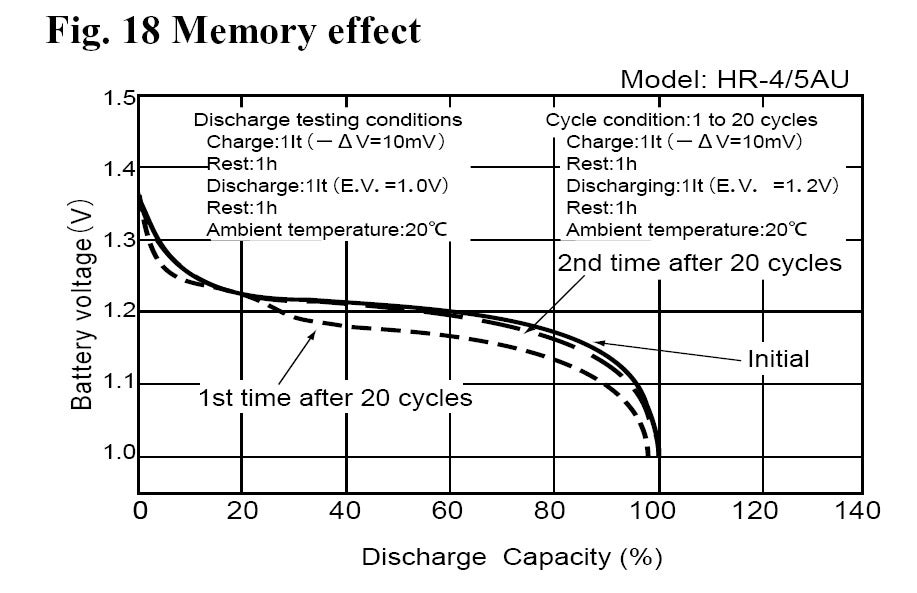

The memory effect is an occasional defect, which occurs in Ni-Cd and Ni-MH rechargeable batteries, where the maximum battery voltage decreases even though the original power of the battery remains the same. In particular, this could occur when batteries are . May 05,  · The battery memory effect is a reduction in the longevity of a rechargeable battery's charge, due to incomplete discharge in previous uses. Some types of batteries, such as nickel-cadmium and nickel-metal hydride, can develop a memory effect .

Nickel metal hydride NiMH batteries are an improvement from nickel-cadmium NiCd batteries, especially as they replace cadmium Cd with a metal that can absorb hydrogen. NiMH can provide higher capacity than NiCd batteries, have less obvious memory effect, and be more environmentally friendly without the toxic cadmium. The memory effect is a phenomenon that occurs when the battery contents crystallize over time and use.

This generally occurs in NiCd batteries, less in NiMH batteriesand not at all with lithium batteries. It is generally believed that low-voltage NiMH batteries have no memory effect while both high-voltage NiMH and NiCd batteries have this memory effect.

The memory effect is caused by the repeated partial charging and discharging of the battery. To prevent this memory effect, it is recommended to recharge the batteries after use or discharge them on a charger with a discharge function. Recharging a battery that is still charged will produce a memory effect. To fully discharge the battery, the battery must be placed in standby mode for about 24 hours.

After it is fully discharged, it can be fully charged. After so many cycles, the battery capacity can be restored unless the battery is damaged. In general, to avoid the memory effect, it is recommended that consumers choose nickel-metal hydride batteries or lithium batteries. If you want to know more about NiMH batteries, or other related information. Grepow is mainly engaged at NiMH batteries and lithium batteries, please feel free to contact us via email: info grepow.

Temperature has one of the greatest impacts on the charge and discharge performance of batteries. A nickel metal hydride NiMH battery is similar to a nickel cadmium NiCd battery, but it has higher capacity, less Read more. The biggest difference between NiMH and LiPo batteries is the chemical properties that enable the charging of the batteries. NiMH Read more. Introduction In the last week, we described you all the details of lithium battery C-rating.

Today, we would discuss the Read more. Your email address will not be published. Skip to content. Table of Contents. Wide temperature-range Ni-MH what is a yellow bird. What is the maximum discharge rate of Ni-MH battery? Battery Monday. Share to. Category Battery Posted on September 29, September 28, Category Battery Posted on October 3, September 29, Category Battery Posted on October 27, November 3, Leave a Reply Cancel reply Your email address will not be published.

Close Search for: Search.

Custom-Shaped Batteries

The memory effect, lazy battery effect or battery memory can happen if a battery is repeatedly charged before all of its stored energy is depleted. This in turn will cause the battery to ‘memorise’ the decreased life cycle. Next time you use it, you may notice a significantly shorter operating time. Usually, performance itself is not affected. In some battery cells, the memory effect is caused by how the metal and electrolyte react to form a salt (and the way that salt then dissolves again and metal is replaced on the electrodes when you recharge it). Aug 28,  · The memory effect is a phenomenon that occurs when the battery contents crystallize over time and use. This generally occurs in NiCd batteries, less in NiMH batteries, and not at all with lithium batteries.

Lithium-ion batteries are high performance energy storage devices used in many commercial electronic appliances. Certainly, they can store a large amount of energy in a relatively small volume. They have also previously been widely believed to exhibit no memory effect.

That's how experts call a deviation in the working voltage of the battery, caused by incomplete charging or discharging, that can lead to only part of the stored energy being available and an inability to determine the charge level of the battery reliably. Scientists at the Paul Scherrer Institute PSI, together with colleagues from the Toyota Research Laboratories in Japan have now however discovered that a widely-used type of lithium-ion battery has a memory effect.

This discovery is of particularly high relevance for advances towards using lithium-ion batteries in the electric vehicle market. The work was published today in the scientific journal Nature Materials. Many of our everyday devices that get their energy supply from a battery , whilst not always being as "smart" as they are described in the adverts, often come equipped with a kind of memory.

For example, a battery powered shaver or electric toothbrush that is recharged before the battery runs out, can later take revenge on the prudent user. The battery appears to remember that you have only taken part of its storage capacity — and eventually no longer supplies its full energy.

Experts refer to this as a "memory effect", which comes about because the working voltage of the battery drops over time because of incomplete charging-discharging cycles. This means that despite the battery still being discharged, the voltage it supplies is sometimes too low to drive the device in question. The memory effect therefore has two negative consequences : firstly, the usable capacity of the battery is reduced, and secondly the correlation between the voltage and the charge status is shifted, so the latter cannot be determined reliably on the basis of voltage.

The memory effect has long been known to exist in Nickel-Cadmium- and Nickel-metal hydride batteries. Ever since lithium-ion batteries started to be successfully marketed in the s, the existence of the memory effect in this type of battery had been ruled out. Incorrectly, as this new study indicates.

The memory effect and its associated abnormal working voltage deviation have now been confirmed for one of the most common materials used as the positive electrode in lithium-ion batteries, lithium-iron phosphate LiFePO4. With lithium-iron phosphate, the voltage remains practically unchanged over a large range of the state of charge. This means that even a small anomaly in the operating voltage could be misinterpreted as a major change in the state of charge. Or, to put it another way: when the state of charge is determined from the voltage a large error can be caused by a small deviation in the voltage.

The existence of a memory effect is particularly relevant in the context of the anticipated steps towards using lithium-ion batteries in the electric mobility sector.

In such vehicles, the battery is partially recharged during each braking operation by the engine running in a generator mode. It is in turn discharged, and usually only partially, to assist the engine during acceleration phases.

The numerous successive cycles of partial charging and discharging lead to individual small memory effects adding up to a large memory effect, as this new study demonstrates. This leads to an error in the estimate of the current state of charge of the battery, in cases where the state of charge is calculated by software on the basis of the current value of the voltage.

The researchers identify the microscopic mechanism behind the processes of charging and discharging as the ultimate cause of the memory effect now found in lithium-ion batteries. The electrode material — in this case lithium-iron phosphate LiFePO4 — consists of a large number of small, micrometer-sized particles which are charged and discharged individually one after the other.

Researchers refer to this model of charging and discharging as the "many particles model". Charging proceeds particle by particle, and involves the release of lithium ions. A fully charged particle is therefore lithium-free and comprises only iron phosphate FePO4.

Discharge in turn involves the re-incorporation of lithium atoms into the electrode particles, so that iron phosphate FePO4 becomes lithium-iron phosphate LiFePO4 once more. The changes in the amount of lithium associated with charging and discharging induce a change in the chemical potential of the individual particles, which in turn changes the voltage of the battery.

However, charging and discharging are not linear processes. During charging, chemical potential initially increases, with the progressive release of lithium ions.

But then, the particles reach a critical lithium-content value and chemical potential. At this point, there is an abrupt transition: the particles give up their remaining lithium ions very rapidly, but are not allowed to change their chemical potential.

This is the transition that explains why battery voltage remains practically unchanged over a wide region voltage plateau. The existence of this potential barrier is vital for the memory effect to become manifest.

Once the first particles have overcome the potential barrier, and have become lithium-free, the electrode particle population gets split up into two groups. In other words: there is now a clear distinction between lithium-rich and lithium-poor particles see graphic.

If the battery is not fully charged, a certain number of lithium-rich particles that have not made it over the barrier will remain. These particles do not remain on the edge of the barrier for long, because this state is unstable, and they will "slide down the slope", that is, their chemical potential will decrease.

Even when the battery is discharged again and all of the particles will come to rest in front of the barrier, this division into two groups will be maintained. And here is the crucial point: during the next charging process, the first group lithium-poor particles will overcome the barrier first, whilst the second group lithium-rich will "lag behind". In order for the "delayed" group to get over the barrier, their chemical potential must be increased, and this is what causes the overvoltage the "bump" in the graphic that characterises the memory effect.

The memory effect is thus a consequence of the particle population being divided into two groups, with very different concentrations of lithium, which is followed by the particles "jumping" over the potential barrier one after the other. This overvoltage, through which the effect is noticeable, is equal to the additional work that needs to be done to carry the particles that lagged behind after a partial charge, over the potential barrier.

The time that elapses between charging and discharging a battery plays an important role in determining the state of the battery at the end of these processes. Charging and discharging are processes that alter the thermodynamic equilibrium of the battery, and this equilibrium can be achieved after some time.

Scientists have found that idling a sufficiently long period of time can be used to erase the memory effect.

However, in accordance with the many particles model, this only happens under certain conditions. The memory effect only vanished if one waited a sufficiently long time after a cycle of partial charging followed by full discharge. In such cases, the two particle groups were still separated after the full discharge, but were found on the same side of the potential barrier.

Thus, the separation disappeared, because particles attained an equilibrium state, in which they all had the same lithium-content. The memory effect remained however providing you waited after the partial charging and before the incomplete discharge.

Here, the particles were on opposite sides of the potential barrier, and this prevented a reverse of their division into "lithium-rich" and "lithium-poor". According to Petr Novak, Head of the Electrochemical Energy Storage Section at the PSI and co-author of the publication, the study disproves a long cherished misconception: "Ours is the first study that has specifically looked for a memory effect in lithium-ion batteries.

It had simply been assumed that no such effect would arise". To acquire knowledge via research is often a fruitful mix of speculation and diligence: "Our finding results from a combination of critical investigation and careful observation. The effect is in fact tiny: the relative deviation in voltage is just a few parts per thousand. But the key was the idea of looking for it at all.

It thus took a flash of inspiration in order to ask what might happen during partial charging in the first place. For the future use of lithium-ion batteries in vehicles however, this recent discovery is not the final word. It is indeed absolutely possible that the effect could be detected and taken into account through clever adaptation of the software in battery management systems, Novak pointed out. Should that prove successful, the memory effect would not stand in the way of a reliable and safe use of lithium-ion batteries in electric vehicles.

So now, engineers face the challenge of finding the correct way of handling the peculiar memory of batteries. Explore further. More from Chemistry. Your feedback will go directly to Science X editors.

Thank you for taking your time to send in your valued opinion to Science X editors. You can be assured our editors closely monitor every feedback sent and will take appropriate actions. Your opinions are important to us. We do not guarantee individual replies due to extremely high volume of correspondence. E-mail the story Memory effect now also found in lithium-ion batteries Your friend's email Your email I would like to subscribe to Science X Newsletter.

Learn more Your name Note Your email address is used only to let the recipient know who sent the email. Neither your address nor the recipient's address will be used for any other purpose. The information you enter will appear in your e-mail message and is not retained by Phys.

You can unsubscribe at any time and we'll never share your details to third parties. More information Privacy policy. This site uses cookies to assist with navigation, analyse your use of our services, and provide content from third parties.

By using our site, you acknowledge that you have read and understand our Privacy Policy and Terms of Use. Share Twit Share Email. Home Chemistry Materials Science. April 15, Credit: Scanderbeg Sauer Photography. On the extreme right, the normal voltage curve is shown for comparison. Credit: Nature Publishing Group. The chemical potential of the particles rises steadily at first, as the particles give off lithium ions Fig.

Once they have reached Point B chemical potential barrier , the particles give up the remaining lithium ions and are then charged completely Fig. The particles pass over the barrier, one after the other, but not all at the same time.

After partial charging, some particles return to the front of the barrier Fig. Now, a division of particles into lithium-rich and lithium-poor is established. This separation persists, even after the battery has been completely discharged Fig. During the next charging cycle, this group of lithium-poor particles will cross the barrier. This expresses itself as an overvoltage, which is the indicator of a memory effect.

More information: Sasaki, T. Materials , Advance Online Publication. Provided by Paul Scherrer Institute. This document is subject to copyright.
